Vacuum Loaders, Vacuum Receiving Chambers

Pneumatic Conveying & Vacuum Loading Solutions:
Vacuum Loaders
Manual Central Filters

Self-Cleaning Central Filter

Vacuum Receiving Chambers

Vacuum Loader Control Panels


Vacuum Loaders

Advanced Bulk and Conveying, Inc., vacuum loader packages come completely assembled, engineered and factory guaranteed. Our standard package includes a Roots Universal RAI rotary positive displacement blower, v-belt drive, OSHA guard, TEFC motor with slide base, relief valve, vacuum gauge and discharge silencer all mounted on a unitized base.

  • Factory Engineered, Factory Guaranteed Compact Package Designed for Ease of Handling and Installation
  • Indoor or Outdoor Operation
  • Optional Equipment:

  • Air Actuated Vacuum Breaker Valve Self-Cleaning Central Filter Temperature Switches Vacuum Switches Vacuum Transmitters
  • Inlet Silencer

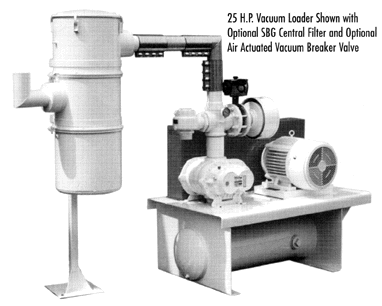

  • Vacuum Loader

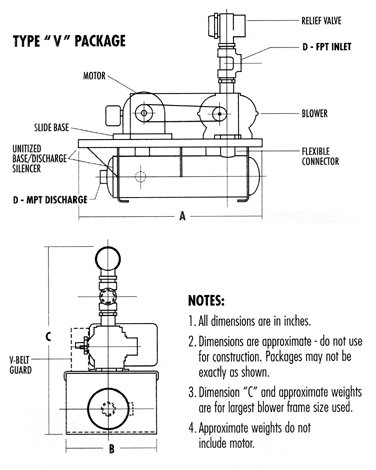

    Vacuum Loader diagram

    Return to top of page

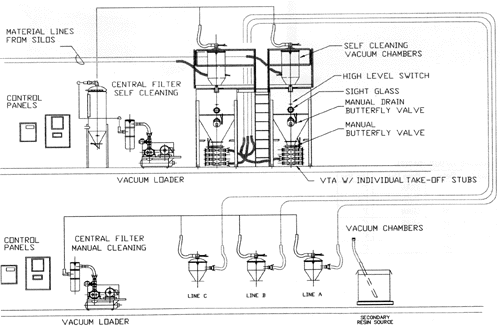

    Vacuum Loader diagram

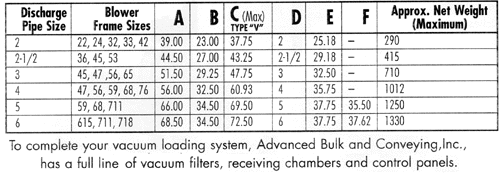

    Vacuum Loader diagram
    Vacuum Loader diagram

    Return to top of page



    Manual Central Filters

    Manual Central Filter Manual filters are used to remove dust from vacuum system convey air prior to passing through the positive displacement blower. Advanced Bulk and Conveying, Inc., supplies the filter on a free-standing frame for floor mounting or with mounting bands for various remote mount installations. When ordering, specify the airline size and configuration of the inlet and outlet (straight or 90 degree elbow).

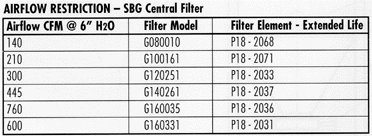

    Airflow Pattern
    Airflow Pattern Chart

    Return to top of page

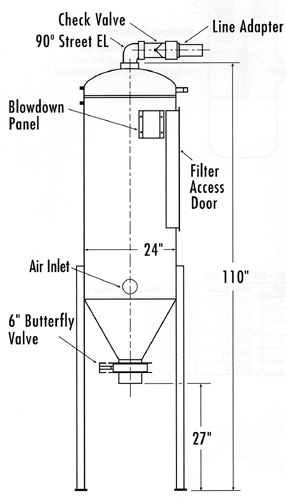

    Self-Cleaning Central Filter

    Advanced Bulk and Conveying, Inc., self-cleaning central filters are free-standing vacuum filters which use reverse pulse compressed air to automatically clean the filter media. These filters save on maintenance time and filter replacement costs when compared with standard cartridge type vacuum filters. The unit is constructed of carbon steel, comes with industrial enamel finish, 6 butterfly valve dust discharge, polyester felt filter bags, bottom bag removal with side door filter access, 110 VAC reverse pulse blow down panel and outlet check valve.

    Options:

  • Choice of Filter Media Pressure Differential Gauge Pleated Cartridge Filters Available for Increased Air-to-Cloth Ratio High Dust Level Sensor
  • Available in 4, 5 or 7 Bag Configuration

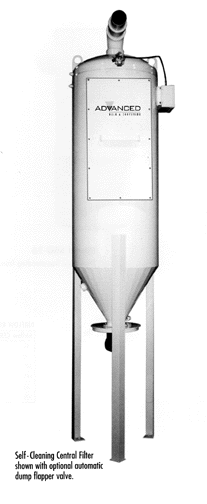

  • Self-Cleaning Central Filter Self-Cleaning Central Filter

    Return to top of page



    Vacuum Receiving Chambers

    Advanced Bulk and Conveying, Inc., vacuum chambers come complete with aluminum bodies, carbon steel lids with internal separation screen, mounting flange, solenoid actuated vacuum control valve, high material level sensor and 5 counter-weighted dump valve. Our chambers are available in a range of sizes so that the proper chamber can be matched to the system requirements.

    Options Include:

  • Stainless Steel or Carbon Steel Body Self-Cleaning Filters for Powder Applications Internal Check Valves Static Fabric Filters for Regrind Applications
  • 24" Mounting Flanges and 8 Dump Valves for Railcar Unloading
  • 6.0 Cu.Ft. Capacity Model 4.0 Cu.Ft. Capacity Model
    2.0 Cu.Ft. Capacity Model .6.0 Cu.Ft. Capacity Model

    Return to top of page

    Vacuum Receiving Chart



    Vacuum Loader Control Panels

    Vacuum Loader Control Panel Advanced Bulk and Conveying, Inc., vacuum loader control panels are designed to work with any multiple station central vacuum loading system which uses either a 110 VAC or 24 VDC solenoid on the vacuum control valve. Level sensor signal is 110 VAC or 24 VDC. Standard enclosures are NEMA 12 rated. All panels are PLC based. Programming of individual loading stations is easily done through a touch screen mounted on the enclosure door.

    Options and Features:

  • Model V-1000 Basic Panel Controls Up to Seven Stations Model V-2000 Basic Panel Controls Ten Stations, a Vacuum Breaker Valve, has Wiring for Self-Cleaning Central Filter and is Expandable Custom Design Panels Available Upon Request
  • Keyed ON/OFF Switches Aid in Security Motor Starter/Disconnects Sold Separately
  • Return to top of page
