Tubing and Pipe Straights

Advanced Bulk and Conveying, Inc. offers tubing and pipe in aluminum, stainless steel and carbon steel. Available sizes are 1.5" O.D. to 10" pipe. Most sizes come standard in 20 ft. lengths.

To Order:

  1. Specify SIZE.

  2. State whether you want TUBING, where the nominal size and the actual Outside Diameter are the same, or PIPE, where the Outside Diameter is a nominal measurement.
  3. Specify GAUGE size for tubing or SCHEDULE size for pipe.

  4. Material of construction: ALUMINUM, STAINLESS STEEL or CARBON STEEL.

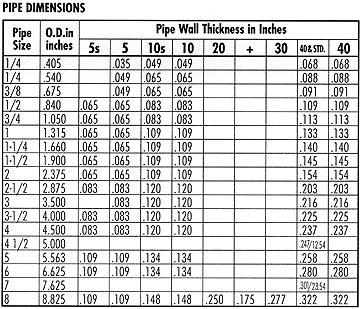

Pipe Dimensions
Pipe Photo
Tubing Dimensions
Tubing

Return to top of page



Pipe and Tube Bends

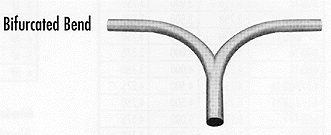

Advanced Bulk and Conveying, Inc. has pipe and tube bends of up to 180° readily available in aluminum, stainless, carbon steel and galvanized in the sizes listed below. Other centerline radii are available but not shown. Special shapes, 'U' bends, offsets, and bifurcated bends are available upon request.

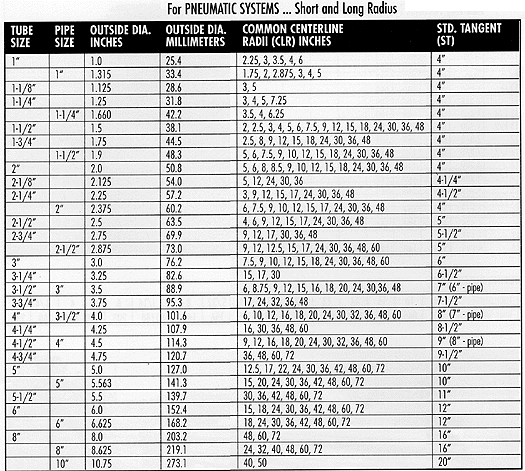

Tube Bend Chart
Tube Bend dimensions

TO ORDER BENDS SPECIFY:

  1. Tube or pipe size: By O.D., wall thickness, alloy, degree of bend, centerline radius and tangent.

  2. Wall Thickness: 16 ga. (.063), 14 ga. (.083), and 11 ga. (.120) in tubing.
    Schedules 5, 10 and 40 pipe. Other wall thicknesses on request.

  3. Materials: Aluminum is 6063-T1 extruded. Stainless is T304 ASTN A312 for pipe and T304 ASTM A249 for tubing.
    Carbon steel ASTM A53 for pipe; A513 for tubing. Galvanized A53 for galvanized-coated pipe and A513 for galvanized-coated tubing.

  4. Stock tube bends:
    We maintain an extensive inventory of tube bends available for 72-hour shipment.
    Most popular bend sizes are stocked in carbon steel, aluminum and stainless materials.
Return to top of page


Compression Couplings for Tubing and Pipe

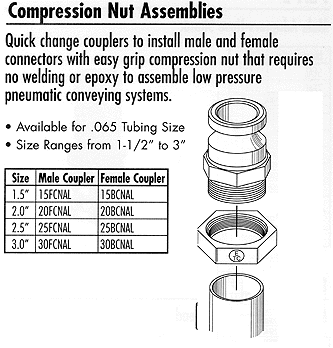

Compression tubing and pipe couplings are designed for permanent installation in the joining of either plain end, threaded, grooved or a combination of any of these joints. The band type construction holds the entire surface of the joint in uniform compression. Couplings are made of heavy gauge zinc plated steel...prices of aluminum or stainless steel couplings quoted on request. Gaskets furnished standard in black neoprene. Gaskets also available in white neoprene, red rubber and a variety of other material at a slight extra charge.

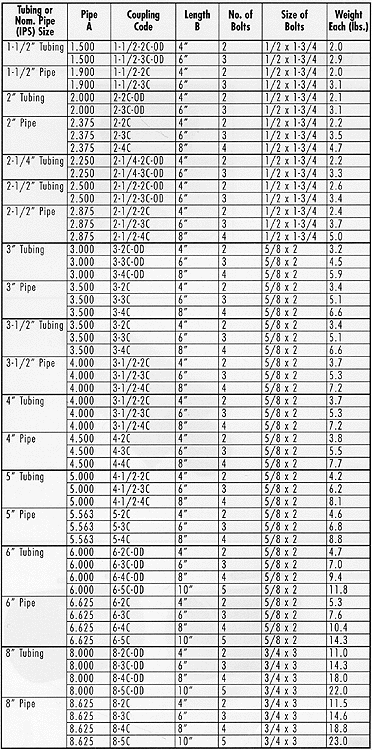

Compression Chart
Compression Photo
Pricing on larger couplings available upon request.

WHEN ORDERING:

1. Always give the Code No. and O.D. of the pipe or tube on which coupling will be used.
2. Stainless steel grounding strips are standard on all couplings.
3. Aluminum grounding strips or couplings without grounding strips available at same price.

Return to top of page



Special Use Couplings

In addition to standard compression couplings, Advanced Bulk and Conveying, Inc., offers a full selection of special use couplings.

Couplings with Stainless Steel Gasket Protectors

Photo Provide positive gasket protection against abrasion or corrosion in pneumatic conveying systems.

Eliminates:

  • Costly Downtime
  • Frequent Gasket Replacement
  • Gasket Being Drawn Into the Pipeline
  • Product Contamination
  • *Side-Band Compression Couplings

    Photo Maximum holding power to connect pipe and tubing.

    Unique design with:

  • Improved Axial Force Holding Power
  • Dual-Locking Side Bands and Two One-Piece Longitudinal Bars to Withstand End Pull
  • Higher Operating Pressure
  • Size Ranges From 2" O.D. Through 24" O.D. Pipe or Tubing Sizes
  • *Especially effective where line vibration is a problem
  • Quickon II Couplers® (Single and Dual)

    Photo Quick and efficient installation or removal of pneumatic and vacuum conveying lines or systems with a twist of the wrist - no tools required.

    Application provides:

  • Fast Take Down and Reassembly of Lines
  • Reduced Coupler Weight
  • All Stainless Steel Construction
  • Sizes Range From 1-1/2" Through 12-3/4" O.D.
  • Standard Gasket is Gum Rubber; Food Grade Gasket Available
  • Positive Locking System
  • Up to 50 PSI Available on Dual Quickon II Couplers®
  • Return to top of page

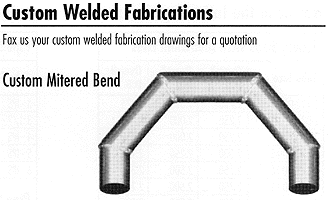

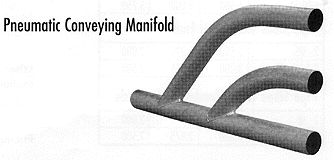

    Pipe and Tube Welded Fabrications

    Advanced Bulk and Conveying, Inc., provides a complete line of welded tube or pipe fabrications. Standard sizes are available in aluminum, stainless steel, carbon steel and galvanized steel.

    How to order:

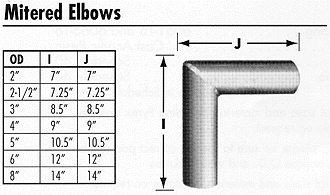

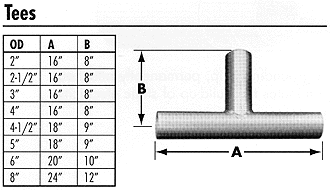

    Order Tees by tube or pipe size, wall thickness and alloy.

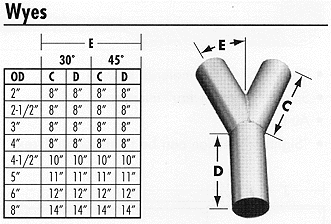

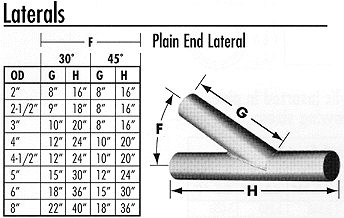

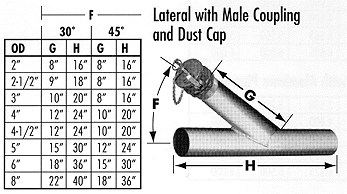

    Order Laterals and Wyes by tube or pipe size, wall thickness, alloy and degree of angle.


    Return to top of page



    Sight Glasses

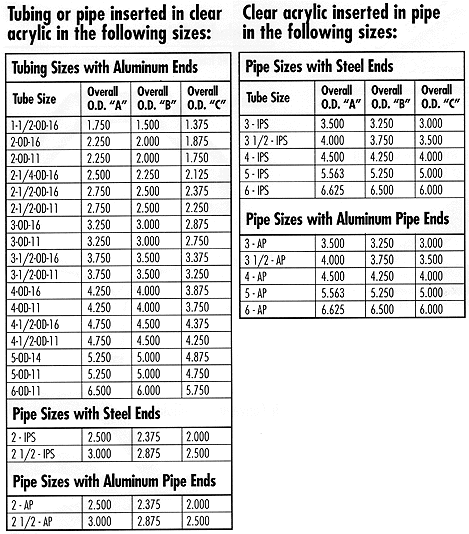

    Sight glasses allow a clear look at material flowing through the convey line. Standard unit comes with aluminum ends, acrylic clear section and grounding strip. Pipe sizes up to 6", pyrex clear section and steel ends are available upon request.


  • Clear look at the material flowing
  • Smooth "straight-thru" interior
  • Air-tight seal
  • "Sighting" section can be furnished in Pyrex
  • A grounding strip, permanently attached, eliminates the build-up of static electricity
  • Fast, easy installation
  • Photo


    Material:

    Aluminum Tubing..........6061-T6 and 6063-T6
    "Sight Glass"...........Cast Acrylic Resin
    Steel Pipe............Schedule 40
    Aluminum Pipe..........Schedule 40
    (Available in Schedule 5 and 10)

    Prices of special sizes and materials including Pyrex sighting section available on request.

    When ordering, please be sure to use the correct part number. Also list tubing or pipe O.D. and wall thickness Pricing of special sizes and materials available on request

    Return to top of page



    Cam-Locking Couplers

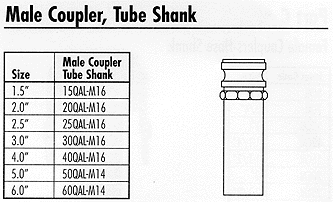

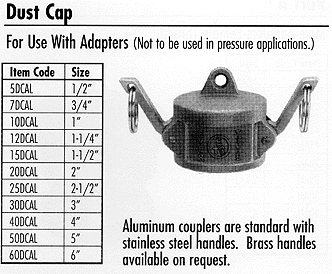

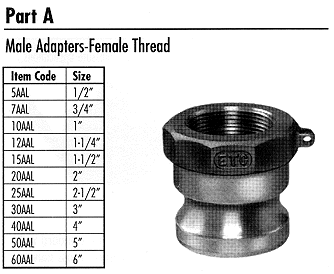

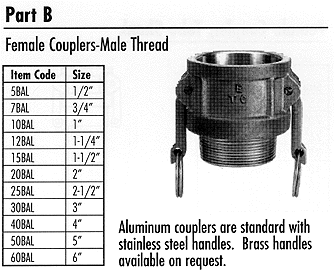

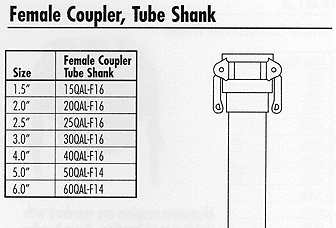

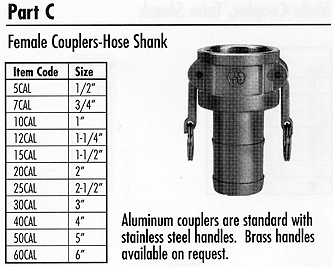

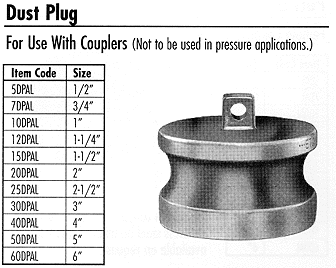

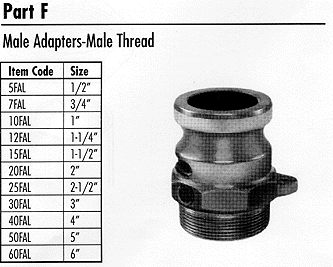

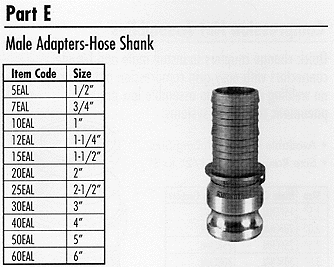

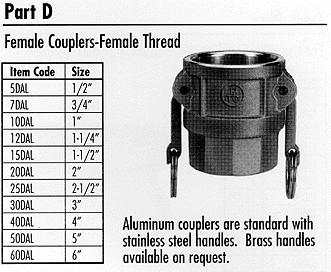

    Quick connecting cam-locking couplers are standard in aluminum. Most types are also available in 8" and 10". Other materials also available upon request.







    Return to top of page








    Return to top of page

    PVC Flexible Hose

    Advanced Bulk and Conveying, Inc., offers material handling hoses to meet a wide variety of bulk conveying system requirements. Flexible hose is suitable for both vacuum and pressure discharge service. Our hoses are ideal for conveying pellets, granular material and powdery substances. Flexible hose offers a fast, convenient method of finishing a pneumatic conveying system.


    Economical Food Grade
    PVC Material Transfer Hose

    Our most popular material handling hose features a clear PVC tube with a mirror smooth bore to provide excellent material flow rates. A clear rigid external PVC helix reinforcement enables user to visually monitor flow of materials. High density PVC materials are known for their ability to withstand abrasion. Hose construction provides good flexibility with light weight. Hose carries FDA "3A Dairy" rating/approval. Operating temperature range from 10°F to 150°F.


    Food Grade PVC Hose
    with Static Dissipating Ground Wire

    This is the same durable light weight hose described above. The only difference is this hose contains an integral stranded copper wire to assure a positive ground where static build-up is a concern.


    Return to top of page

    Extended Performance Urethane
    Material Transfer Hose

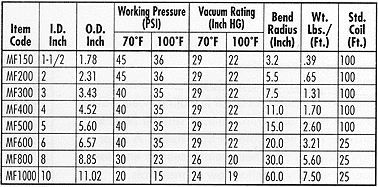

    Hose is made from a urethane formulation which will outlast PVC materials by at least three times when handling abrasive materials. Hose has an ultra-smooth bore to provide excellent material flow rates. Tube and cover of hose are transparent. A gray rigid PVC helix provides reinforcement. Urethane is an inert material which is unaffected by a variety of harsh substances. Corrugated construction provides good flexibility and light weight making hose easy to use. Hose remains flexible at sub-zero temperatures from -30? to 150?.


    Material Handling Hose For Severe Service
    This hose is unmatched for durability and long-term abrasion resistance. Severe service hose is specifically designed for unloading pellets from rail cars, handling sand blast grit, the transfer of grain, and similar severe service applications. Severe service hose is a blend of urethane, PVC and rubber that makes it flexible, light weight and easy to handle – even in the larger sizes. Compared to rubber and metal hoses, this hose offers a low-cost alternative. The outer black cover is static dissipating and ozone-resistant. Operating temperatures from -30°F to 150°F.




    Return to top of page

    Metal Flexible Hose

    Metal Smooth Bore Flex Hose

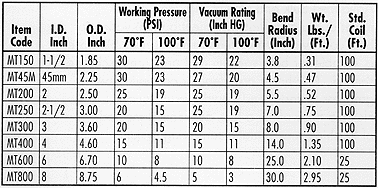

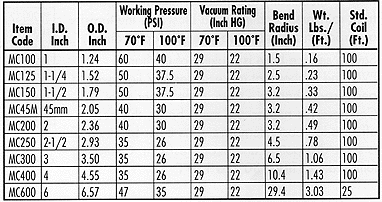

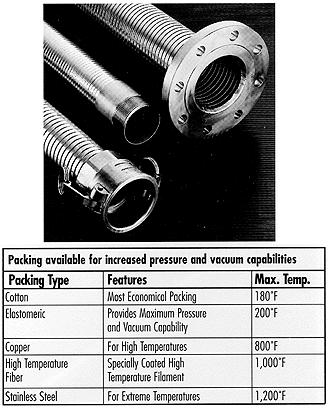

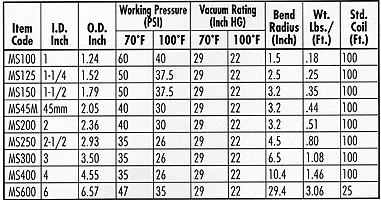

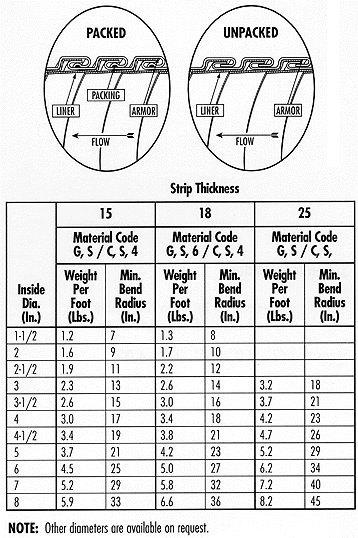

    Smooth bore hose is ideally suited for dry bulk pneumatic conveying. This hose is produced with a durable outer armor and a highly abrasion-resistant liner. A precision manufacturing process makes this hose unequaled in strength and flexibility. Pressure and vacuum capabilities may be easily enhanced by the selection of an appropriate packing material. The smooth bore hose is available in various alloys, metal strip thicknesses, and in diameters from 1-1/2" through 8" I.D. Smooth bore hose is available in any length and can be provided in bulk or fabricated assemblies.


    MATERIAL CODES: Armor Materials: Liner Materials:

    A Aluminum S T301 Stainless Steel
    G Galvanized Steel 4 T401 Stainless Steel
    S T304 Stainless Steel C Carbon Steel
    6 T316 Stainless Steel

    To Order:

    Specify ID required, light, medium or heavy duty, total length required and direction of material flow. Specify hose ends required as hose can be ordered with pipe ends, tube ends, flanged ends or with camlocks.



    Return to top of page



    Vacuum Wand

    Photo Basic Model

    Aluminum construction includes six air register holes and stand off loop at the bottom.
    Sizes: 1-1/2", 2.0", 2.5", 3.0", 4.0"

    Standard Model

    Photo Aluminum construction includes adjustable air register ring and stand off loop at bottom.
    Sizes: 1-1/2", 2.0", 2.5", 3.0", 4.0"



    Return to top of page

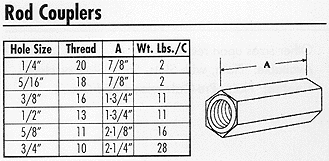

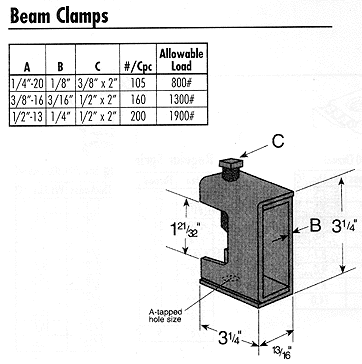

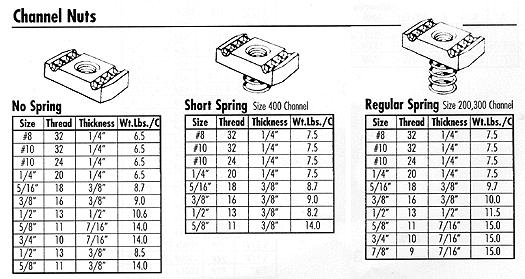

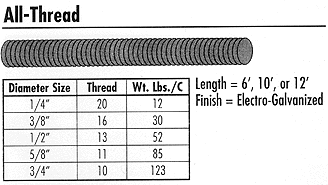

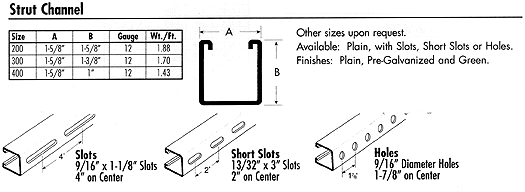

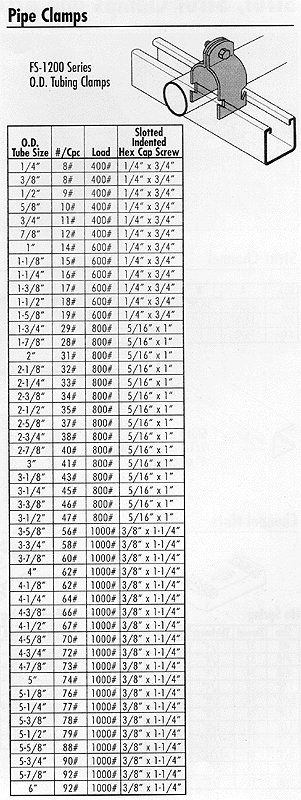

    Installation Hardware-Strut, Strut Clamps and Accessories

    Photo Photo

    Return to top of page


    Return to top of page
